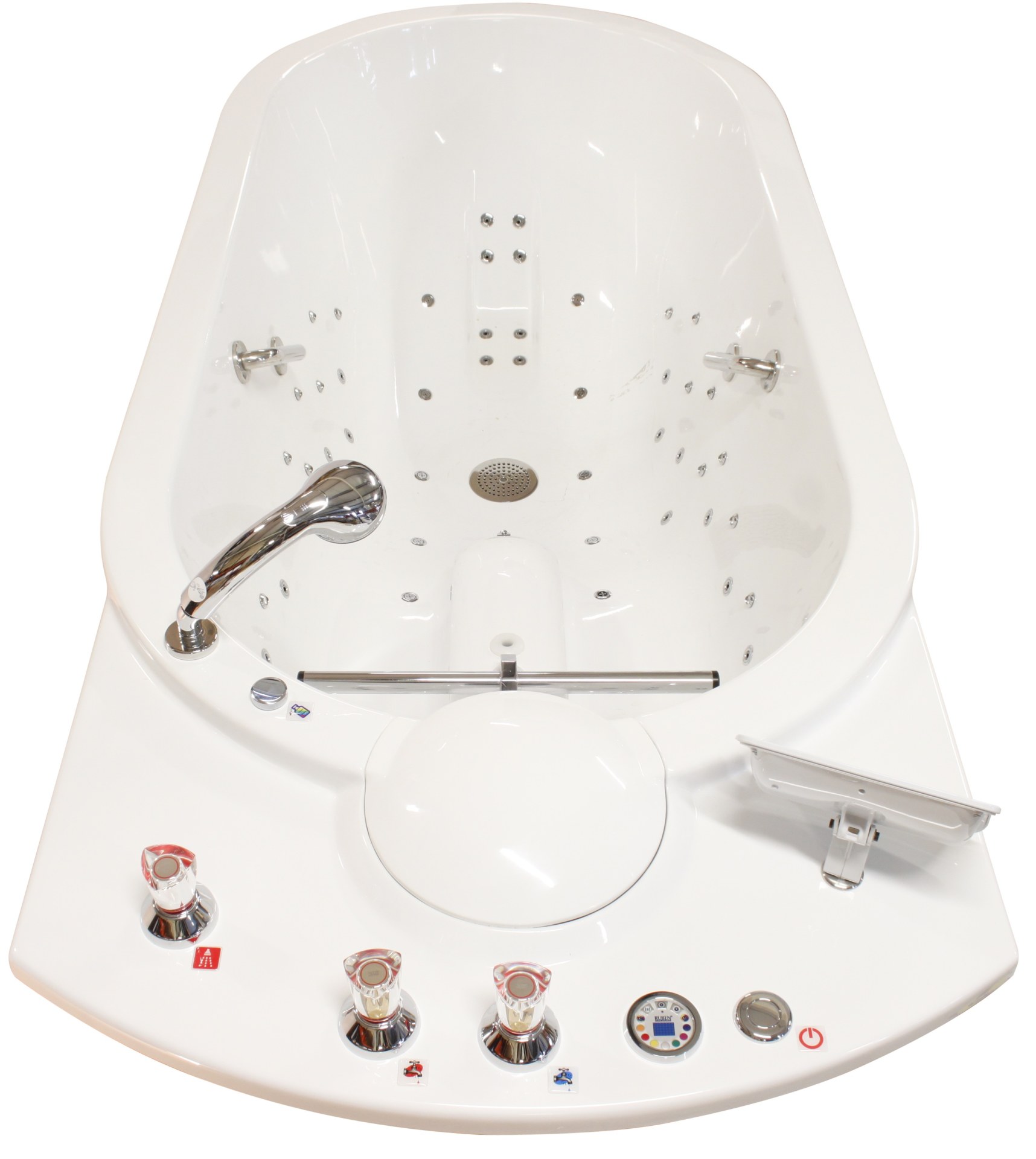

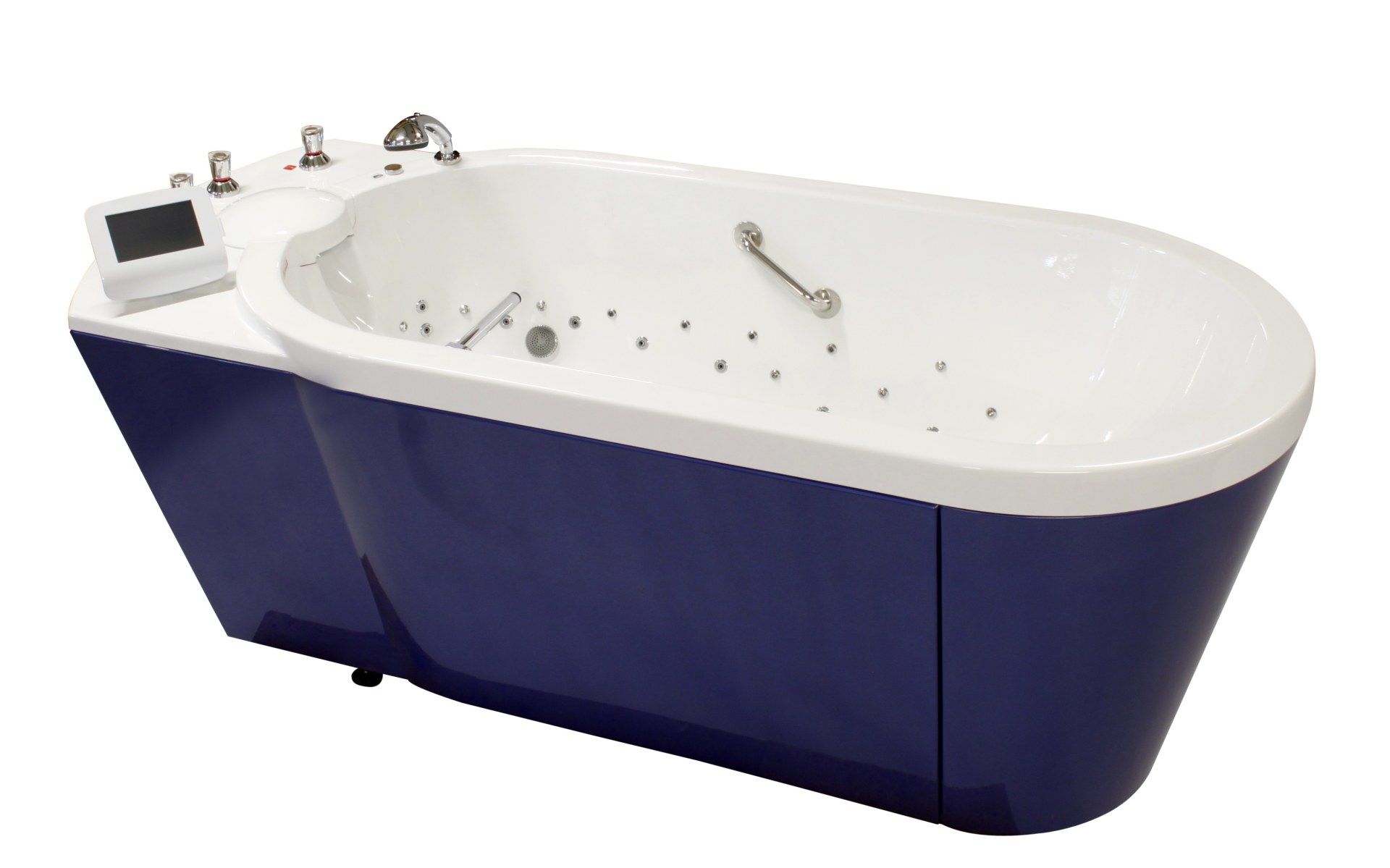

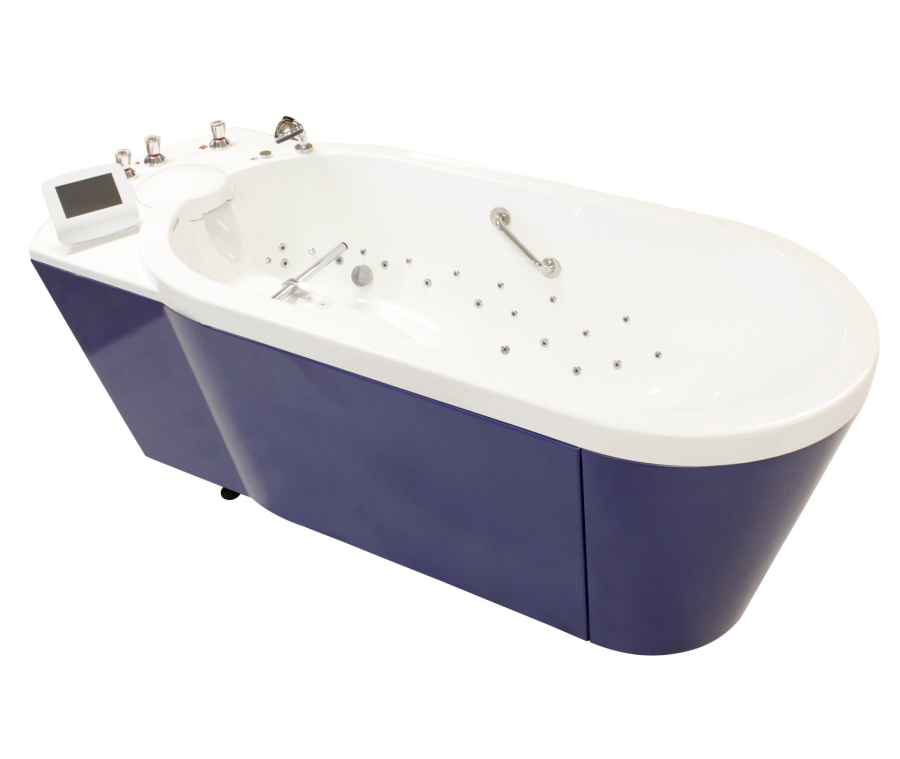

MAGELLAN

Multifunctional hydrotherapy bath

01.501.210
Producer: Technomex

MAGELLAN tub is designed especially for automatic underwater massage, combined with pearl bath. 7” touch screen panel provides easy operation and preview of therapy parameters. Rich options allow adjusting this tub to specific customer requirements. Automatic features of multiple systems do not require the presence of Staff during the treatment.



400V, 50Hz (option 60hz)	Volume: 220 l	Length: 2200 mm	Width: 950 mm	Height: 980 mm

Technical features:

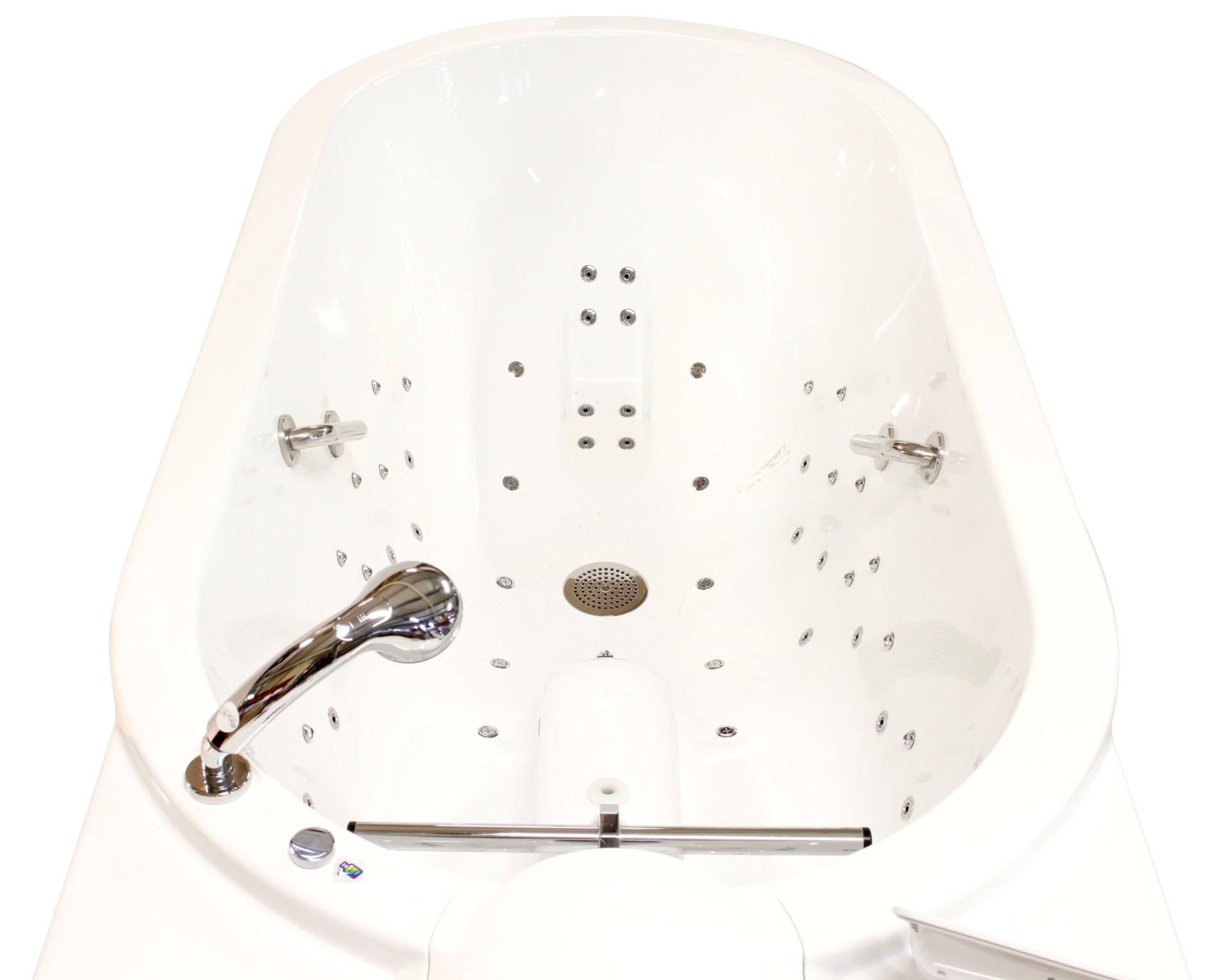

automatic underwater massage: 34 jets - 5 sections (feet, ankles, knees, hips and spine)
pearl bath system: 14x5 jets (air massage)

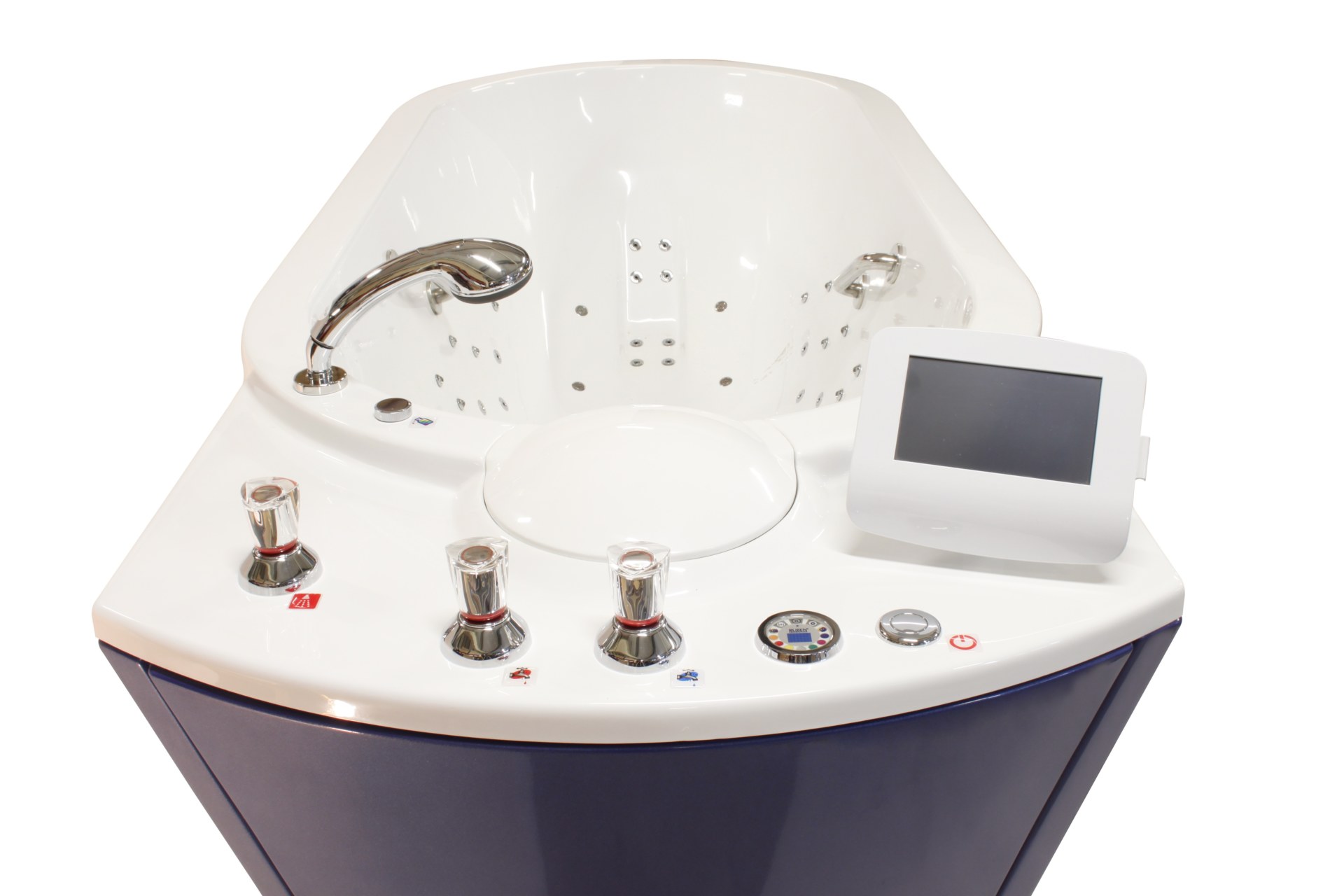

7” touch screen control panel:

ability to create and store therapeutic programs (100)
switch on/off the required nozzle sections
ability to set the sequence and time separately for each
jets section
electronically controlled automatic water filling and drainage
automatic set of required water level
protection against water overflow
automatic switch off after treatment time
pump “dry-working” protection
overload, failure and phase sequence change protection

high-quality pump that provides sufficiently high water pressure during the treatment
innovative no-spout filling system

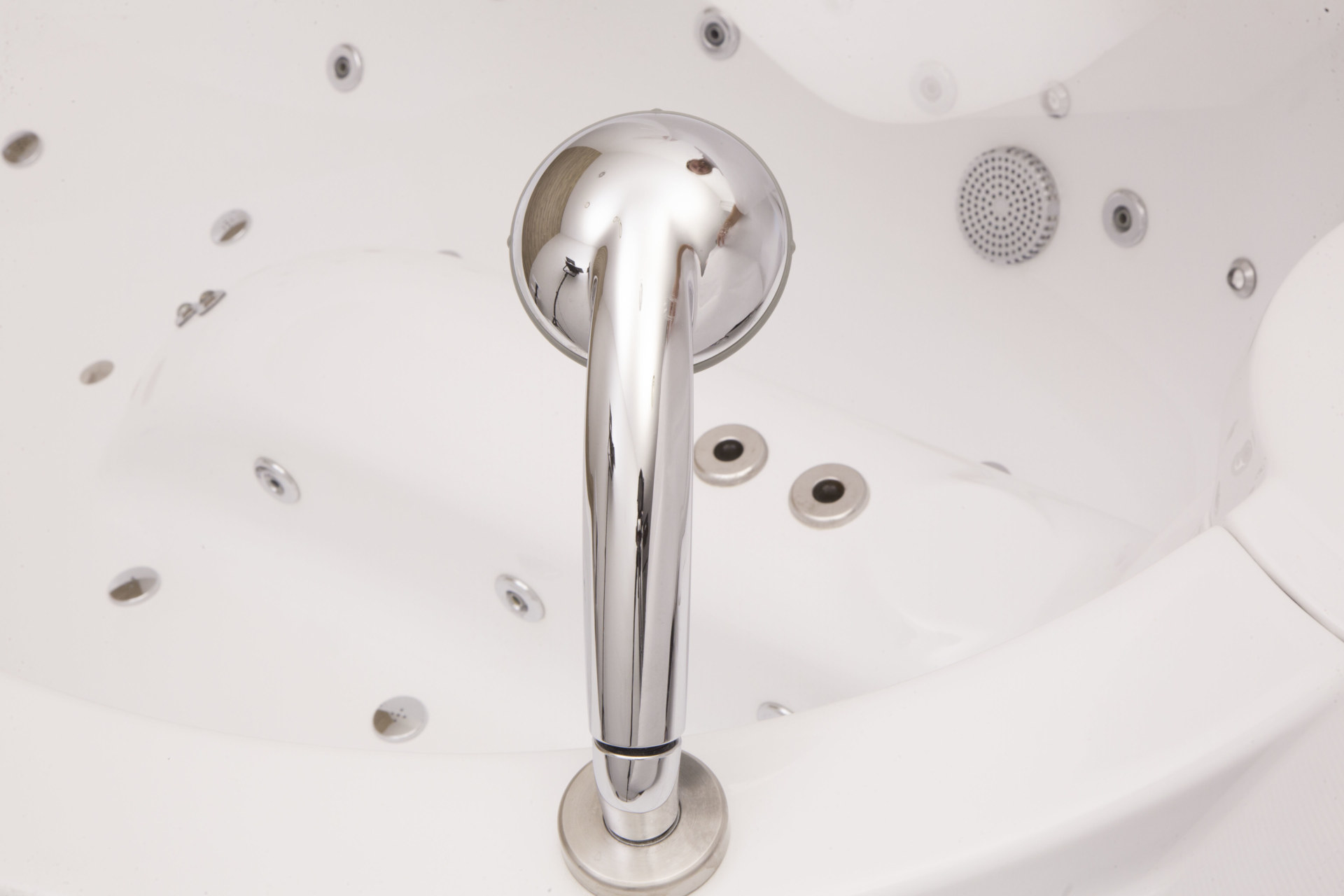

hand shower
foot support with 3-point adjustment
side handrails
leveling and heigh adjusting feet
stair to assist in getting into the tub
cleaning liquid (1l)

OPTION
Chromotherapy system	YES
Chemical disinfection system	YES
Hose for underwater massage with 3 interchangeable option nozzles	YES
Aromatherapy system option	YES
System of keeping temperature/heating up the water in the tub	YES
Electromagnetic water softener	YES
