T-MOT

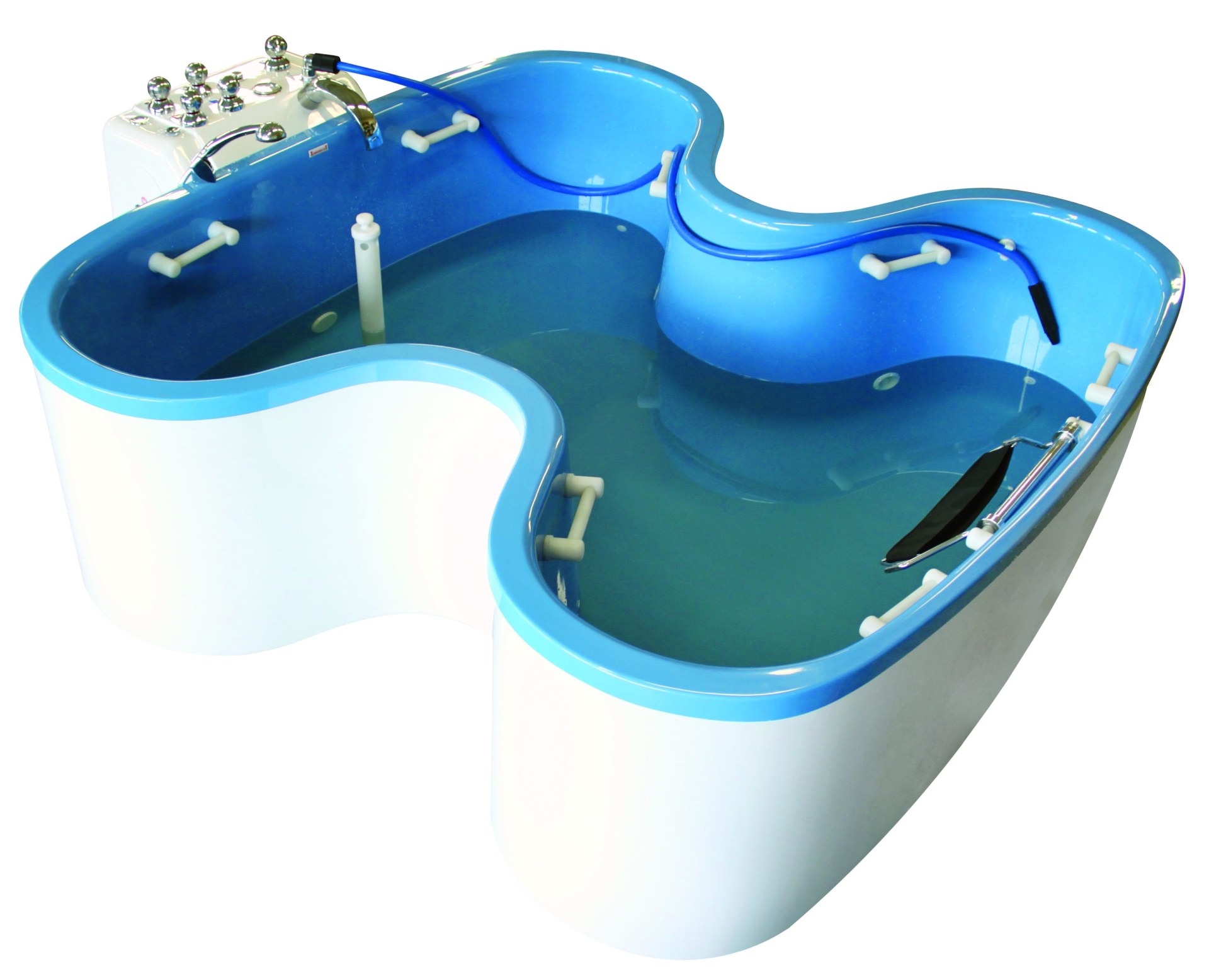

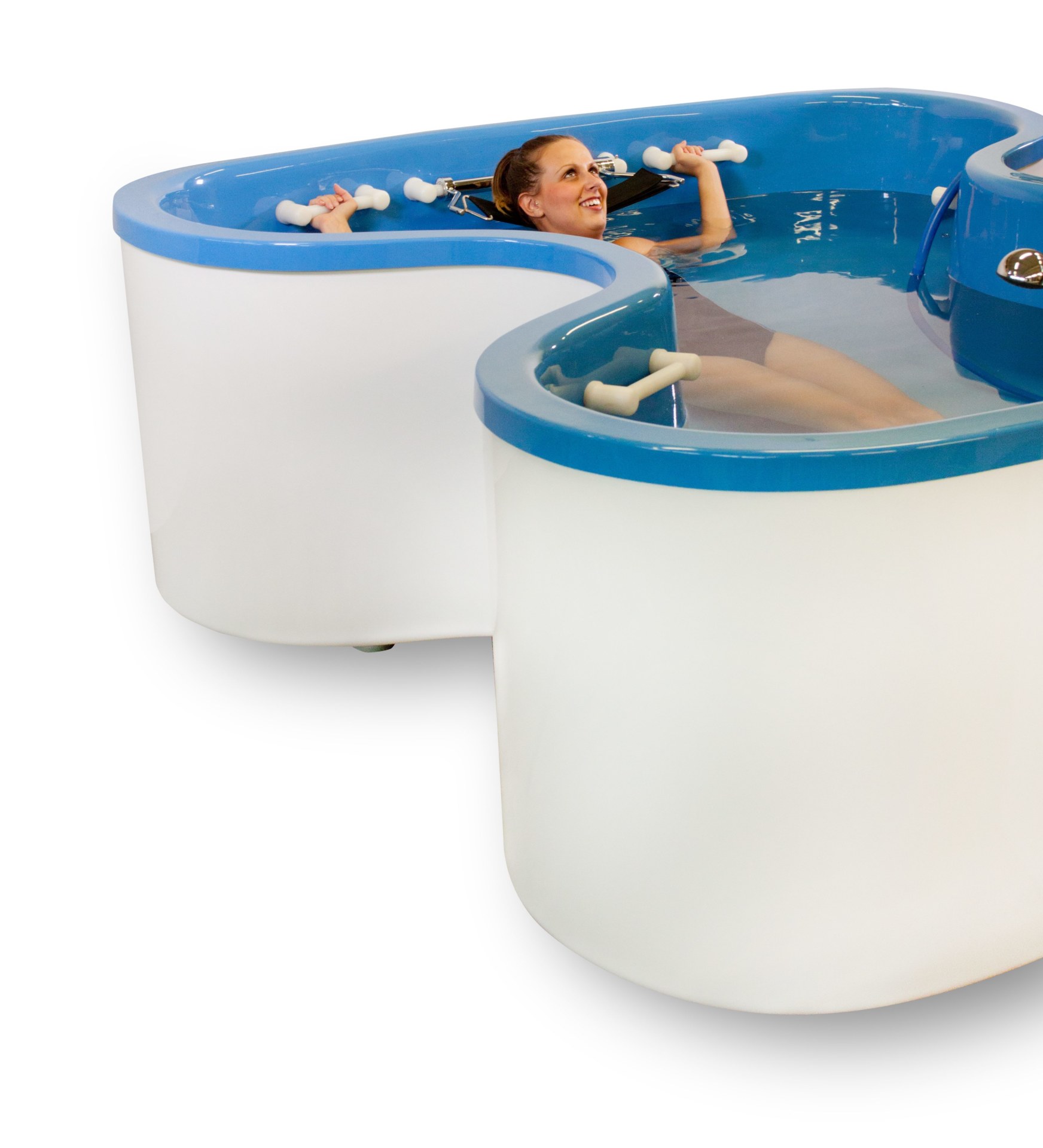

Hubbard tank - „butterfly” tub

01.501.220
Producer: Technomex

Hubbard tank called also “butterfly tub” has been used for many years to allow patients requiring special care and individual attention from therapist to exercise in the water environment, under the strict
supervision of a therapist. Large size of the tub allows free movements to the patient. Made of glass fiber reinforced (GFK) plastic, what ensures years of trouble-free operation and reduces the risk of damage of the tub. Hubbard’s tank may be equipped with, system for underwater massage (T-MOT UWM).



230V, 50Hz (option 60hz) (only version with optional pump)	Volume: 1100 l	Length: 2450 mm	Width: 2000 mm	Height: 900 mm

Technical features:

water filling system
8 handles inside the tub for safety and patient comfort
head support
hand shower
leveling and heigh adjusting feet
stair to assist in getting into the tub
big diameter outflow for fast water drainage
cleaning liquid (1l)

OPTION
Hose for underwater massage with 3 interchangeable nozzles (with pump) adjusted manually with valve	YES
Pearl bath system (air massage)	YES
Jets for automatic underwater massage (6 jets)	YES
Chemical disinfection system (available only with jets)	YES
Temperature maintaining and water recycling system	YES
Aromatherapy system	YES
3,5 touch screen control panel:	YES
Automatic filling system	YES
Automatic set of required water level	YES
Protection against water overflow	YES
Automatic switch off after time of treatment	YES
Pump “dry-working” protection	YES
Overload, failure and phase sequence change protection	YES

COLORS

Colors

Image Gallery
