TOLEDO

Underwater massage & electrotherapy bathtub

01.501.302
Producer: Technomex

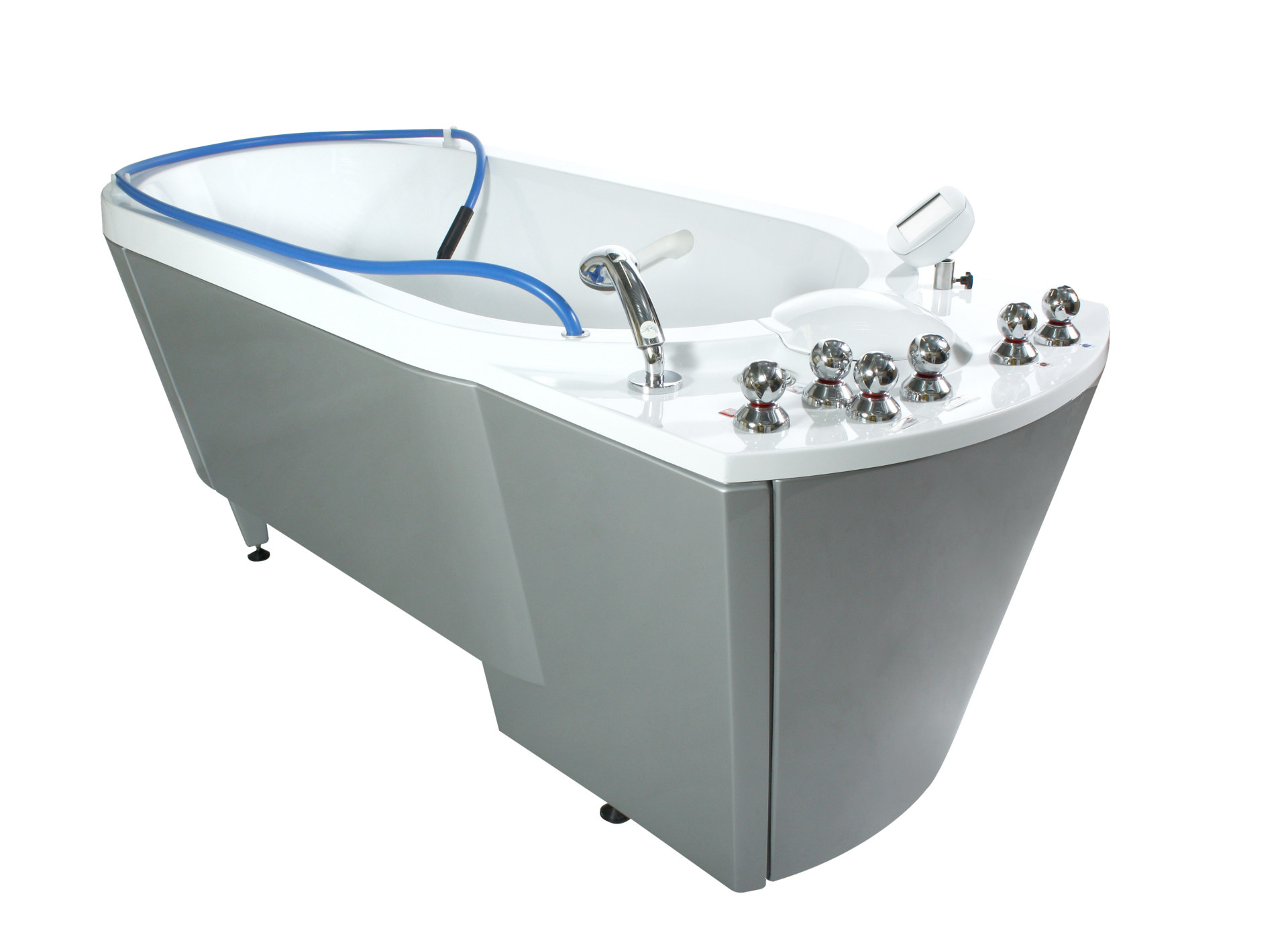

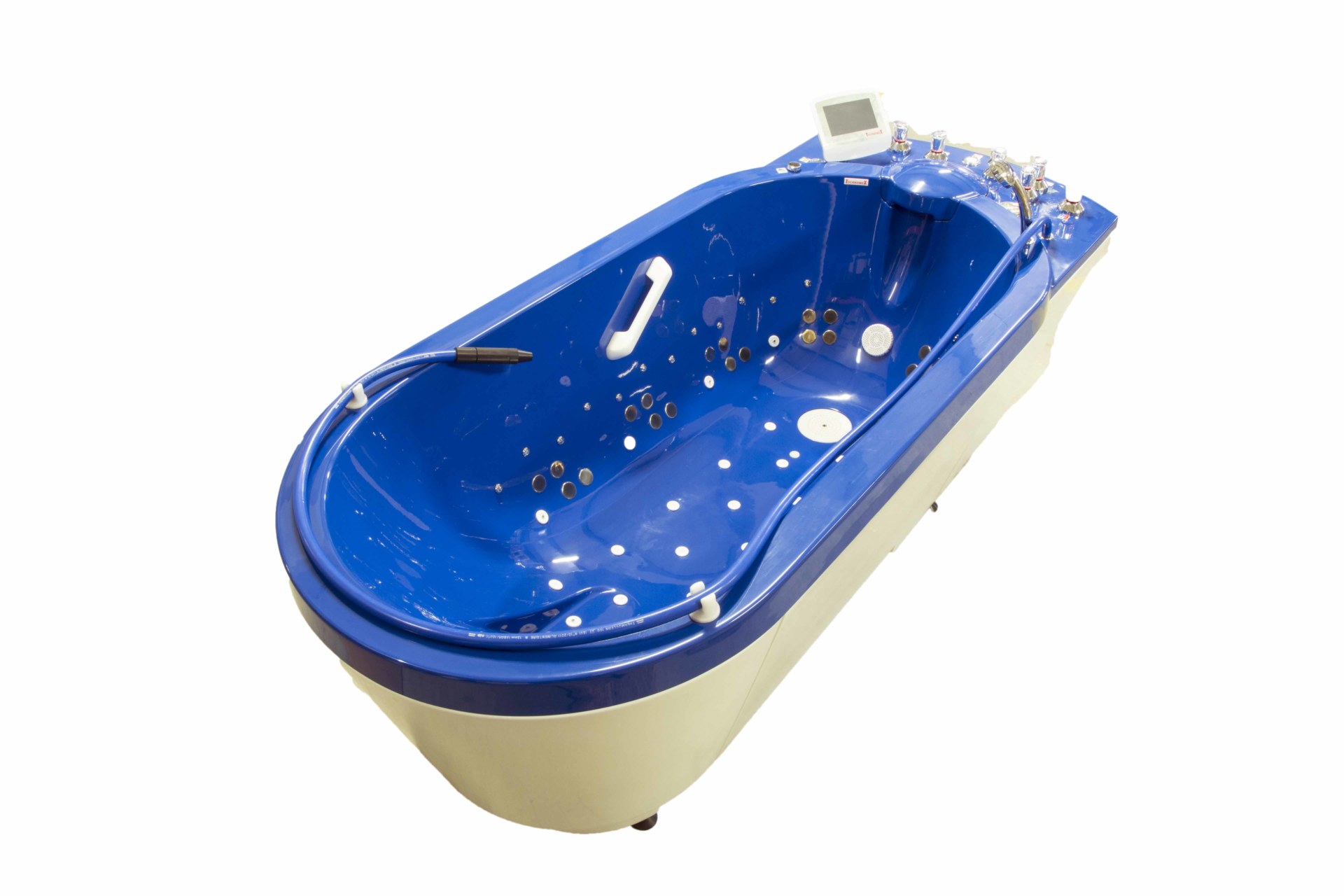

Bathtub TOLEDO is used for electrotherapy bath and underwater massage. The touch screen control panel allows to set the time of procedure, type of current, direction of its flow and active applicators. TOLEDO can generate galvanic, diadynamic and Faradic current. Electrodes placed on the walls of the tub are made of high quality stainless steel with interchangeable polarity. Massage procedure can be performed manually with use of a hose with 3 interchangeable nozzles (adjustable pressure range 0-5,5 bar) or with the optional automatic underwater massage jets system.



400V, 50Hz (option 60hz)	Volume: 240 l	Length: 2200 mm	Width: 950 mm	Height: 980 mm

Technical features:

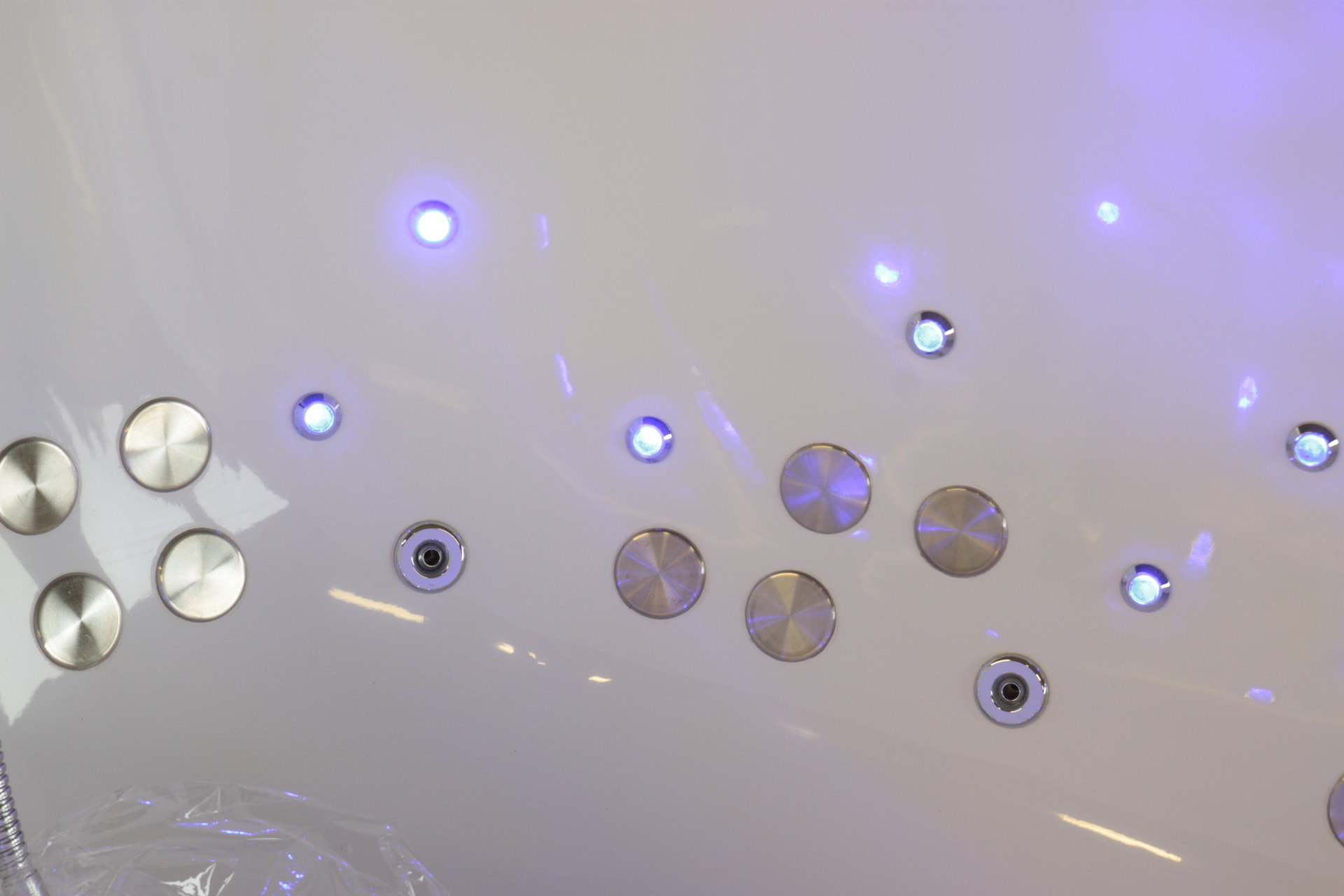

electrodes for electrotherapy treatment made of high quality steel
hose for underwater massage with 3 interchangeable nozzles
7’ touch screen control panel:

automatic filling system
automatic set of required water level (two levels: 120 and 240 liters)
electronically controlled automatic filling and water drain
protection against water overflow
automatic switch off after time of treatment
pump “dry-working” protection
overload, failure and phase sequence change protection

high-quality pump that provides sufficiently high water pressure during the treatment
innovative no-spout filling system
hand shower
side hand rails
leveling and heigh adjusting feet
stair to assist in getting into the tub
cleaning liquid (1l)

OPTION

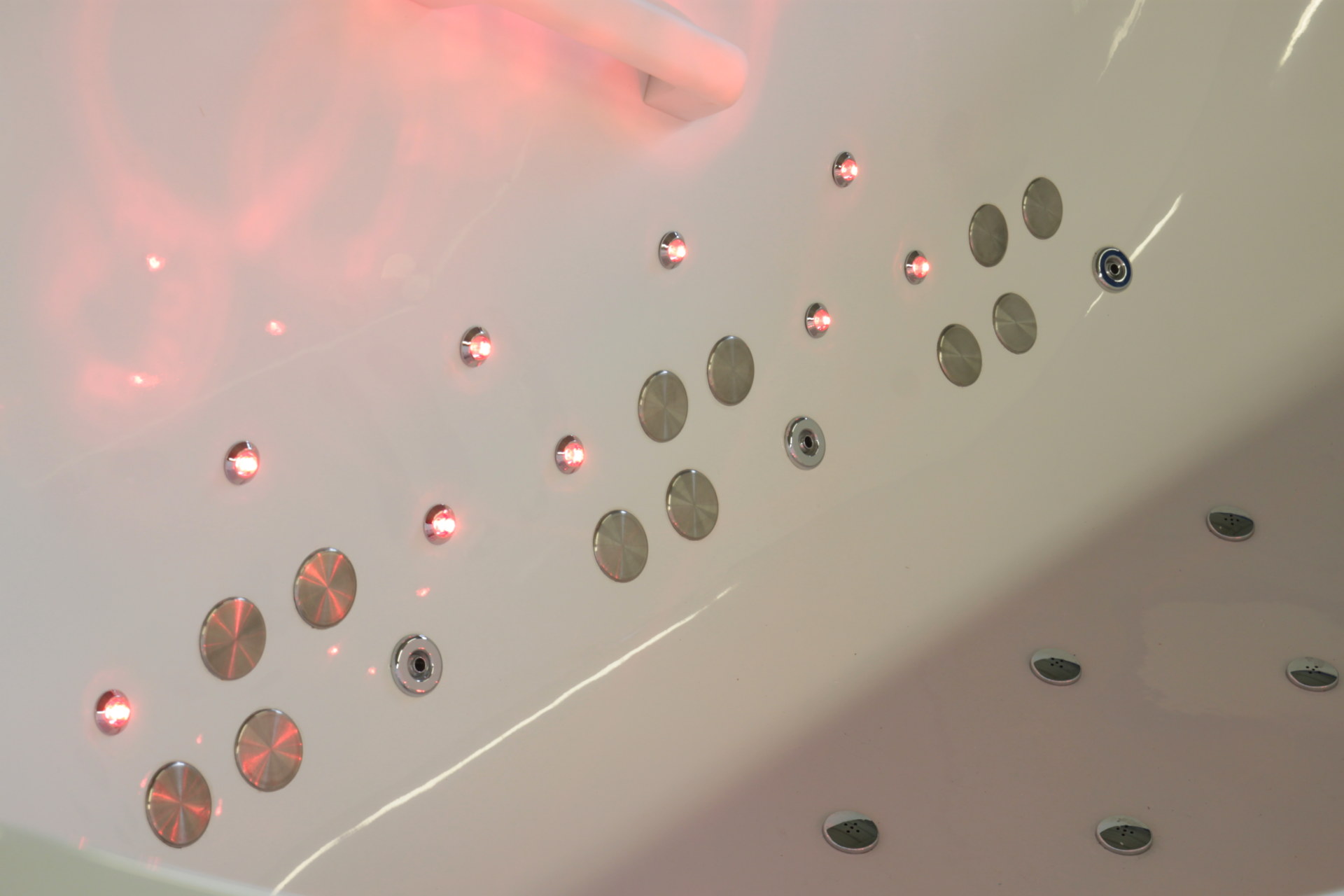

Automatic underwater massage: 8 side jets	YES
Automatic underwater massage: 4 side jets	YES
Pearl bath system : 14x5 air jets	YES
Chemical disinfection system	YES
Aromatherapy system option	YES
Electromagnetic water softener	YES
