SCH-1

Rehabilitation stairs

14.501.053 | producer: Technomex

Rehabilitation stairs are used in physiotherapy for learning and re-education of gait – one of the most important elements of the rehabilitation of patients with dysfunctions of the lower limbs. They are used primarily in rehabilitation departments, physiotherapy, neurology and orthopaedics.

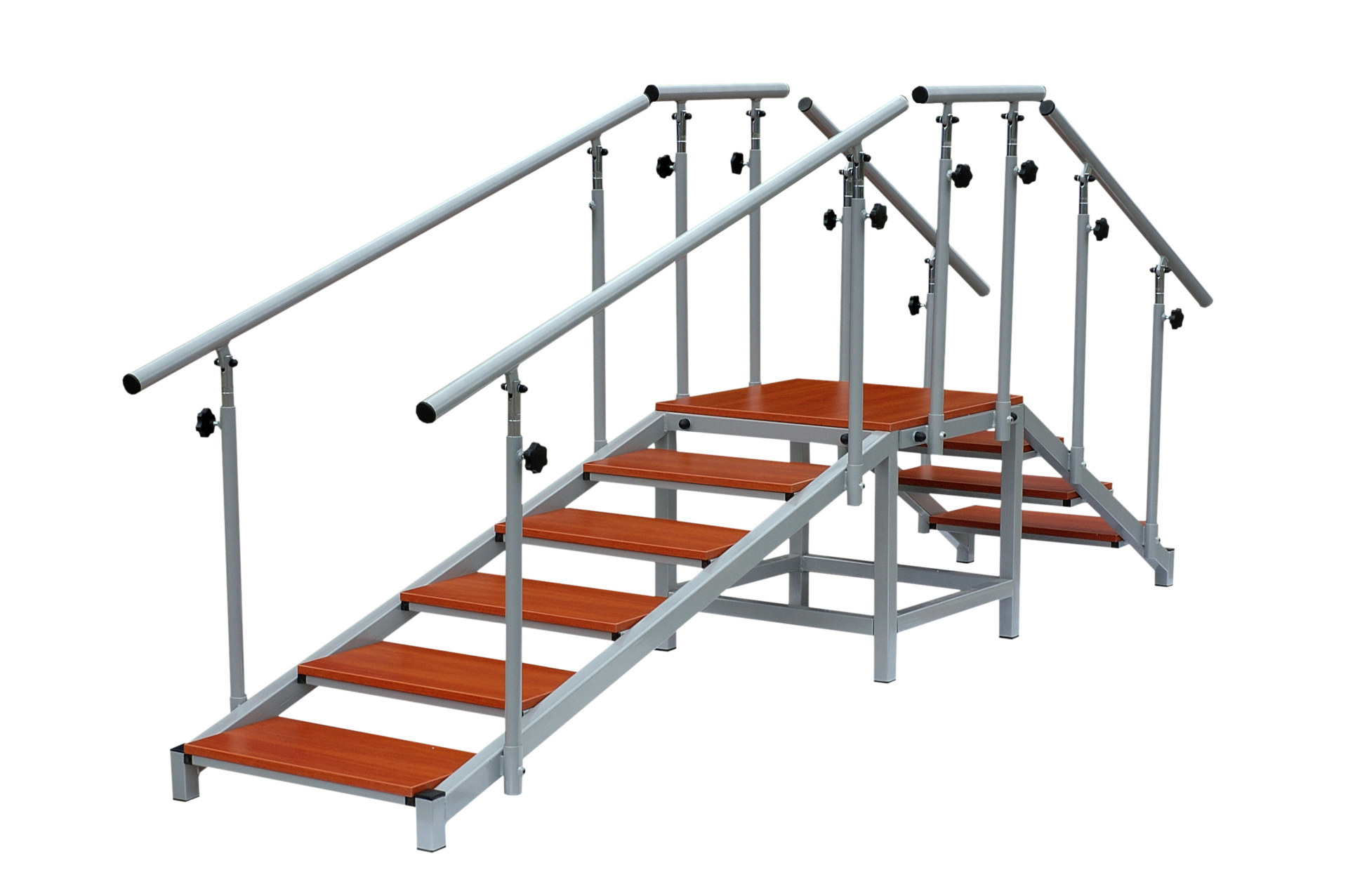

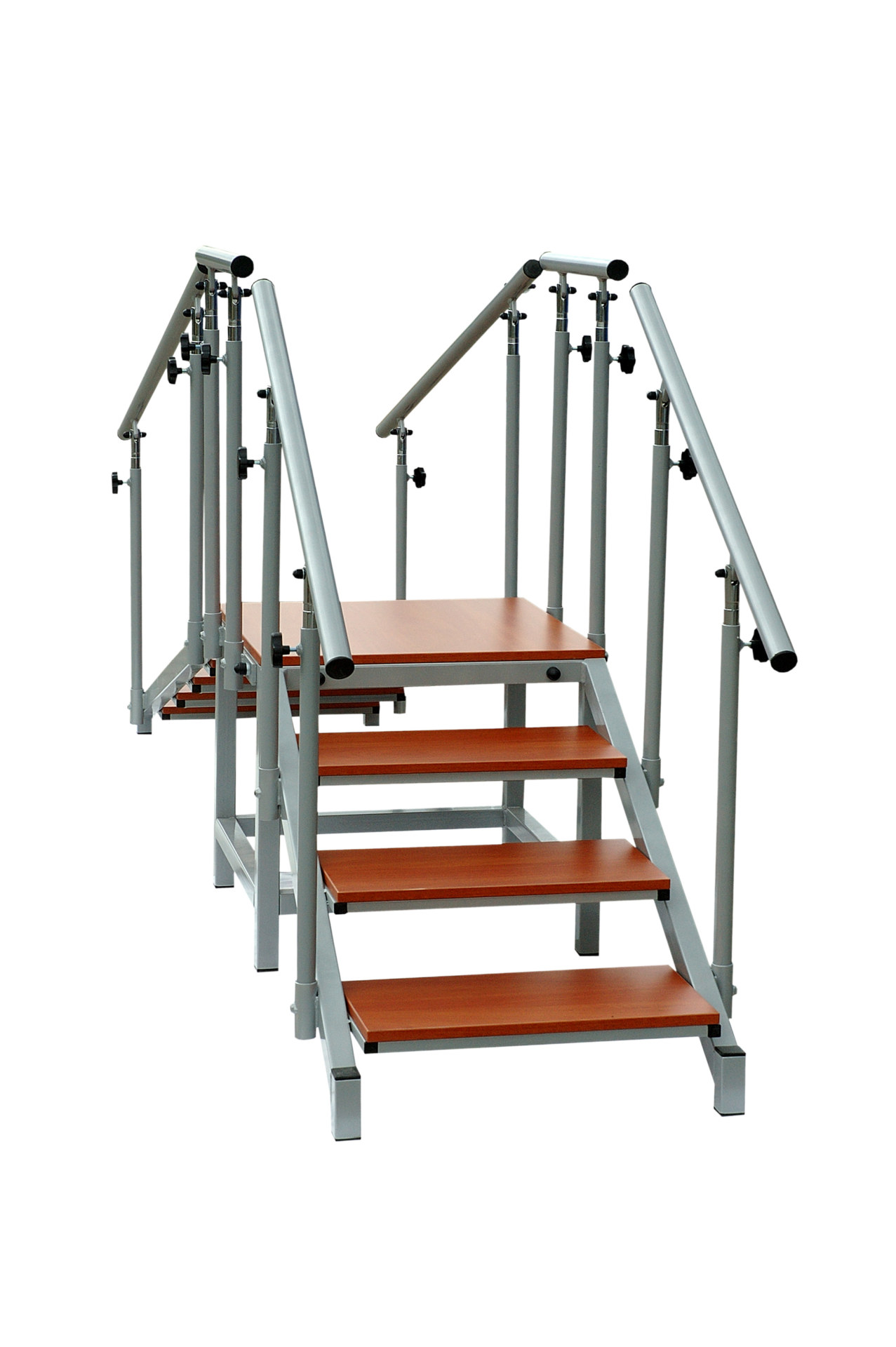

The SCH-1 model is an elevated platform with two flights of stairs, each with a different length. On both sides of stairs and two sides of platform there are handrails. Handrails are adjustable in height and width depending on the patient’s height with simple-to-use screws.

Optionally, the device can be equipped with ramp.

Features

  • Education and re-education of gait,
  • Balance training,
  • Training of coordination of gait,
  • Endurance training,
  • Education of riding in a wheelchair (only if the device is equipped with an additional ramp)

Technical data

Total dimensions:
Length [mm]: 2160
Width [mm]: 720
Height [mm]: 1400

Handrails
Height [mm]: 600-1000
Length [mm]: 560-860

Staircase 1
Height [mm]: 150
Depth [mm]: 300
Width [mm]: 660
Number of steps 3 or 5

Staircase 2
Height [mm]: 200
Depth [mm]: 300
Width [mm]: 660
Number of steps 2 or 3

Platform
Length [mm]: 660
Width [mm]: 660
Height [mm]: 600
