VECTIS

Shoulder

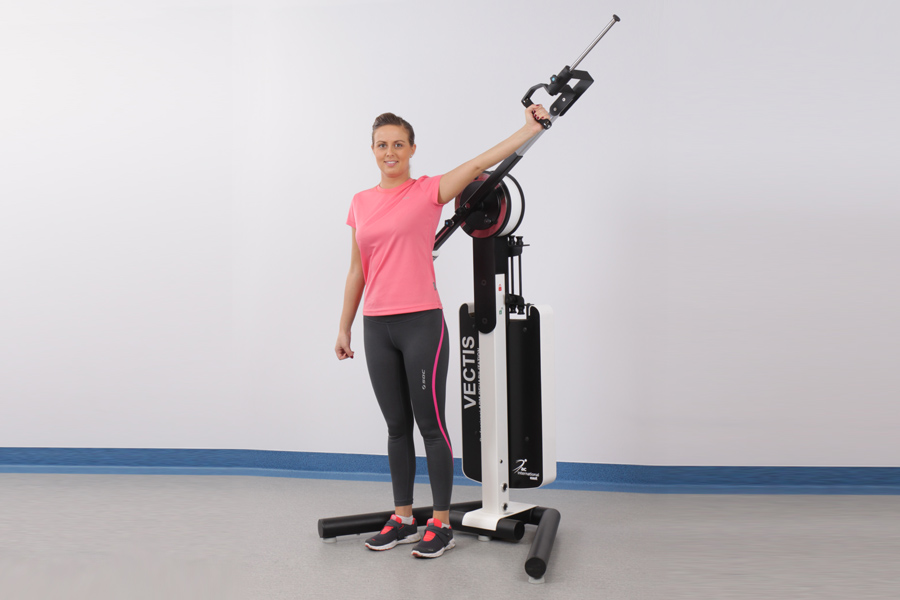

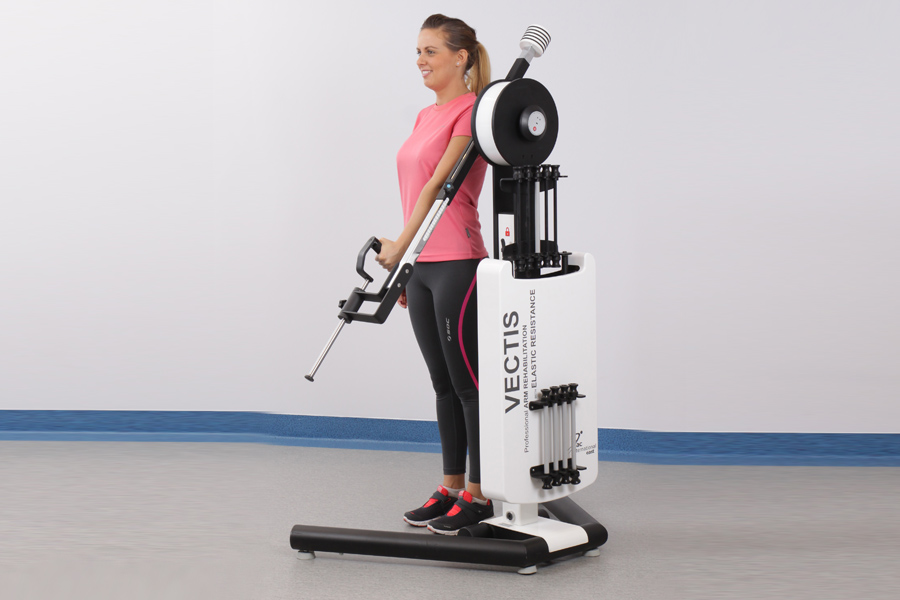

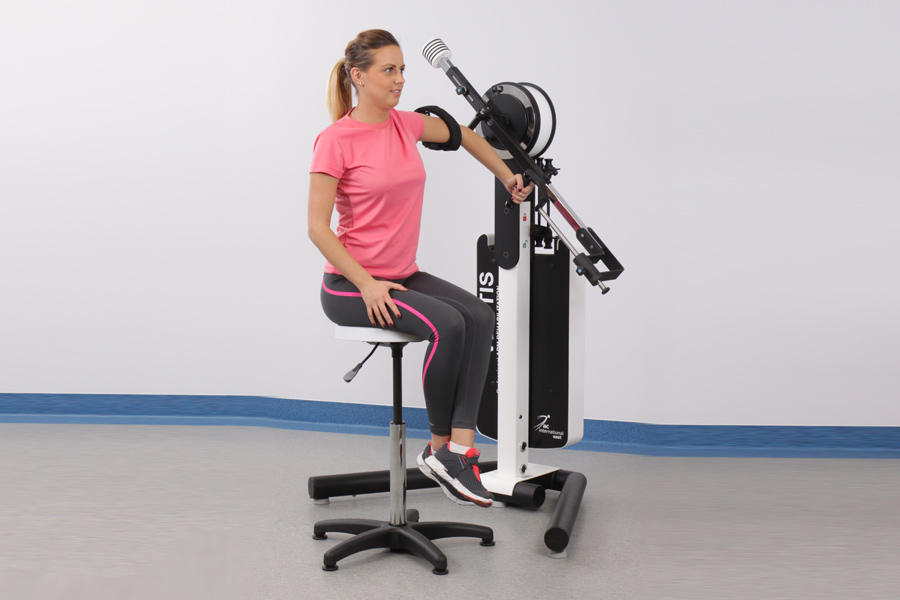

VECTIS – shoulder therapy with elastic resistance

VECTIS uses elastic resistance in the comprehensive rehabilitation of the shoulder joint. The device can perform the following movements:

  • internal / external rotation
  • abduction/adduction
  • flexion/extension

The device is designed to work with elastic resistance elements, which the most important advantage is to generate a slight resistance in the initial phase of the movement, increasing evenly in the later stages of the exercise. Due to these properties Vectis Mini is particularly useful in the post-traumatic, post-surgical, orthopedic and neurological rehabilitation. The device is also used  in sports rehabilitation, rheumatology and geriatrics.

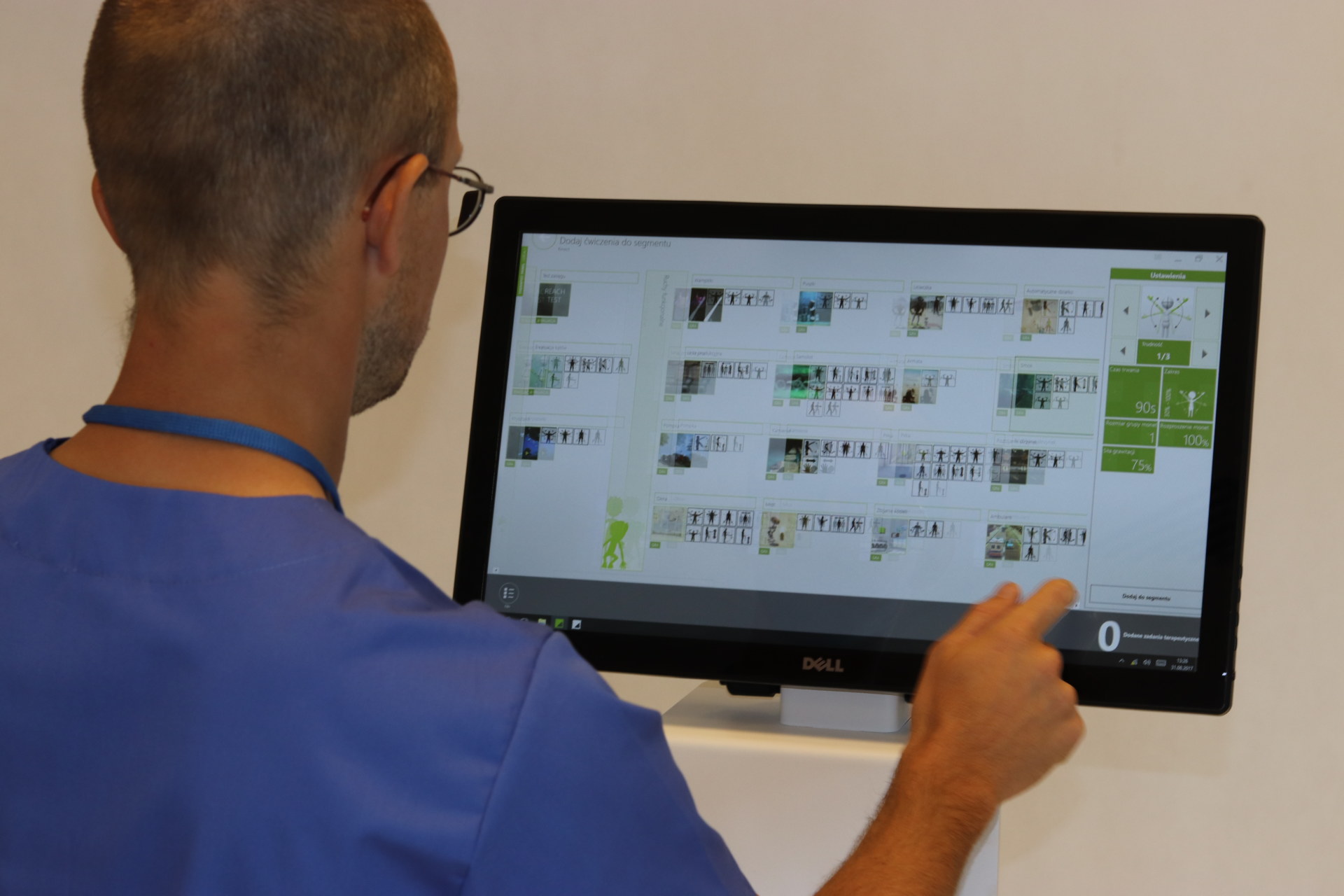

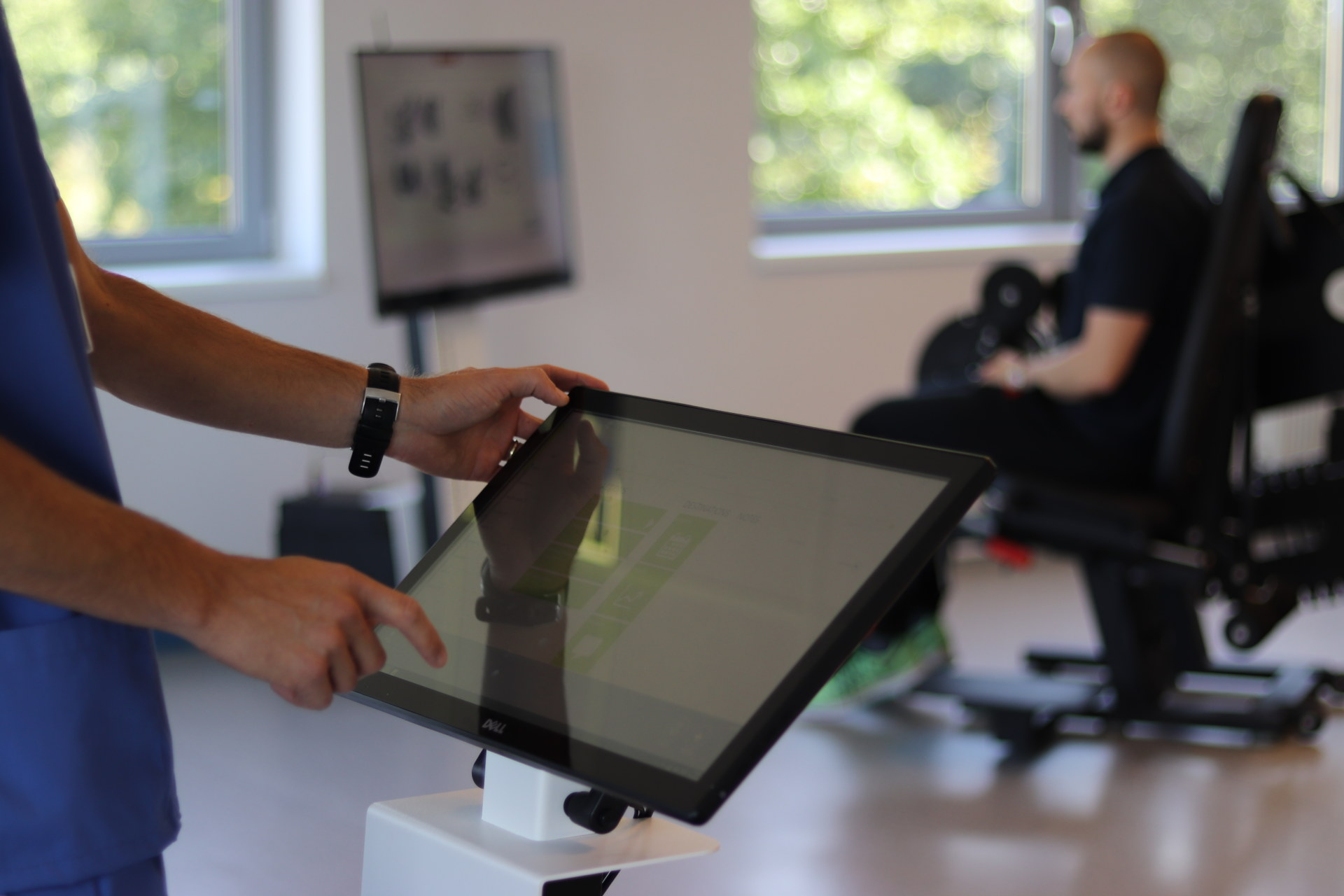

VECTIS as a part of ACX.rehab concept, using software so that the patient is aware of the challenges and progress in rehabilitation which increases patients motivation.

Features

  • measurement of the range of motion,
  • measurement of the generated power,
  • dynamic exercises,
  • isometric exercises,
  • exercise with integrated real time biofeedback,
  • objectification of the rehabilitation process,
  • ability to adapt the level of difficulty of exercises to the current needs of the patient.

Technical data

  • Dimentions: 1380 x 800 x 1600 mm (lenght x width x hight),
  • Weight: 50 kg.
  • Max. weight of patient: 120 kg

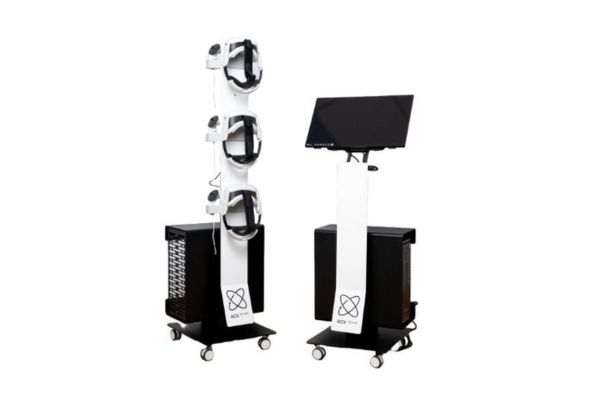

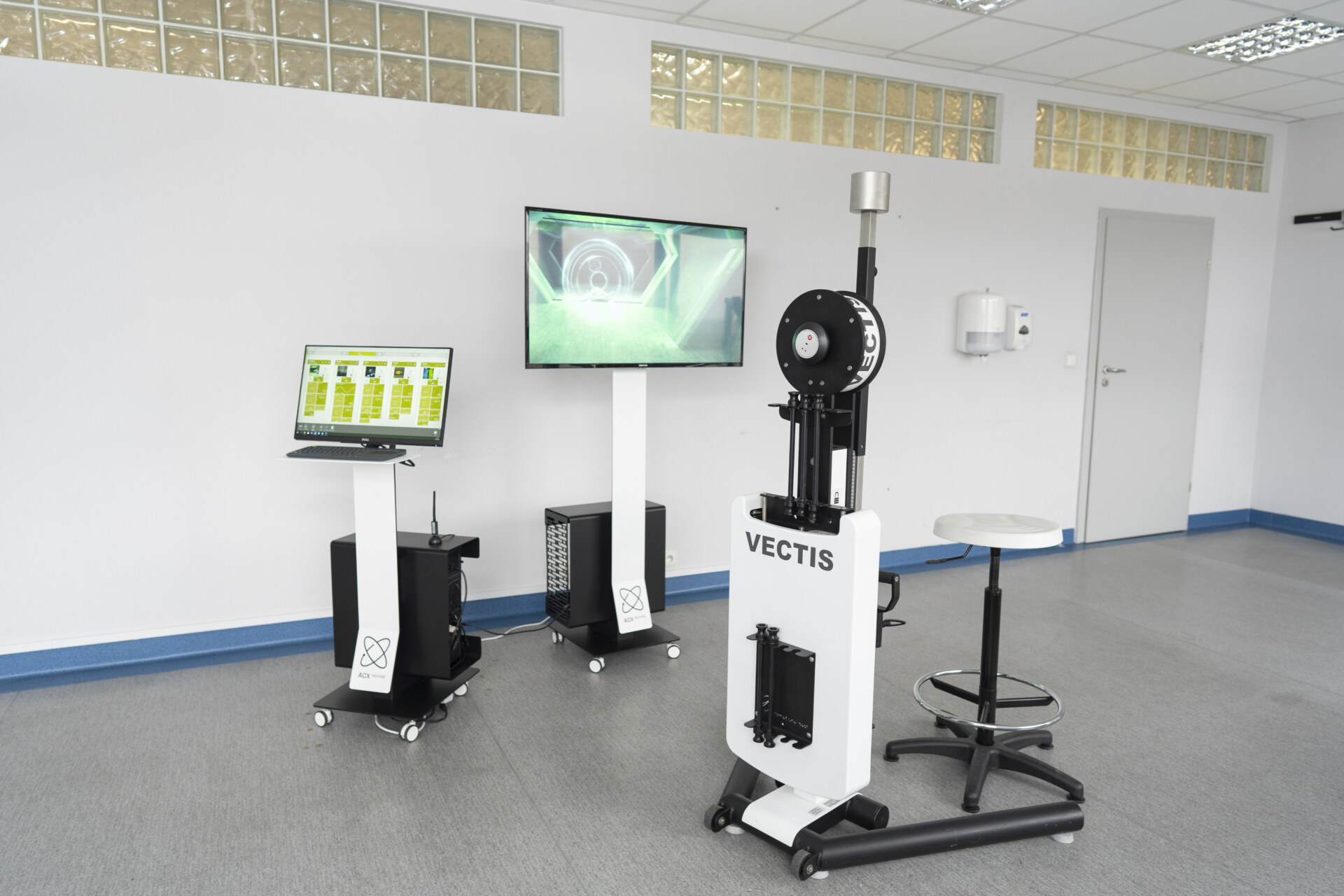

Standard equipment

18.166.116 Set of accesories for VECTIS as single station:

  • Stand for patient with 43″ TV
  • Stand for therapist: 22” touch screen monitor for therapist, PC, keyboard

18.166.117 Set of accesories for VECTIS with therapist workstation

  • Stand for patient  with 43″ TV and PC and keyboard

18.166.115 Therapist workstation

  • Stand with 22” monitor, PC, keyboard, wifi router

Benefits

  • increase range of motion through active movements,
  • increase muscle strength and endurance,
  • improved stabilization of joints by proprioceptive reeducation,
  • improved muscle coordination
