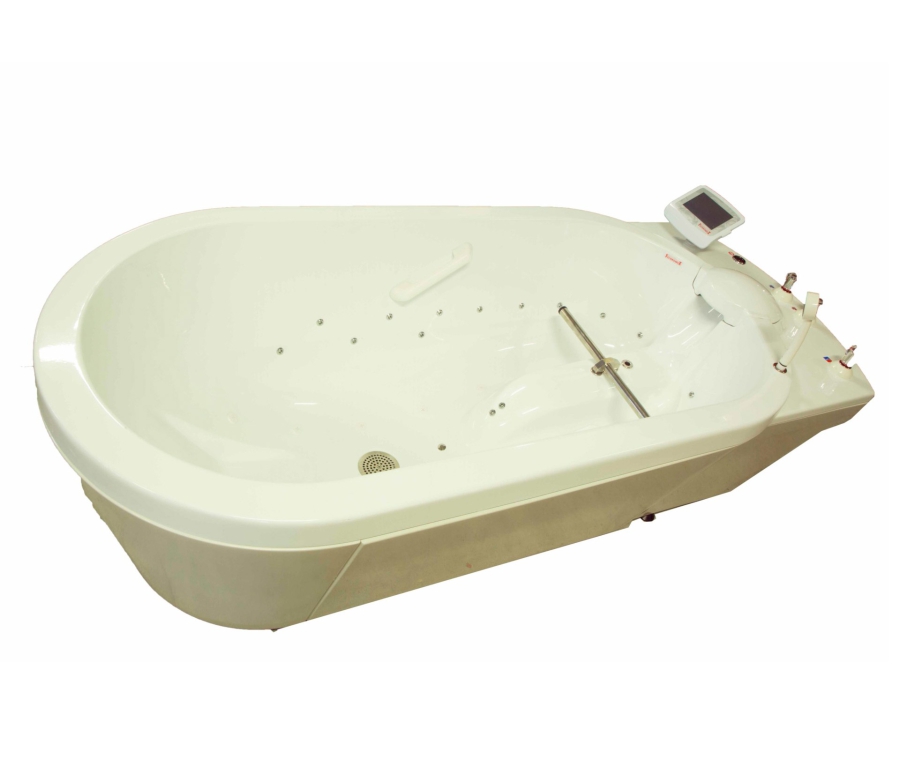

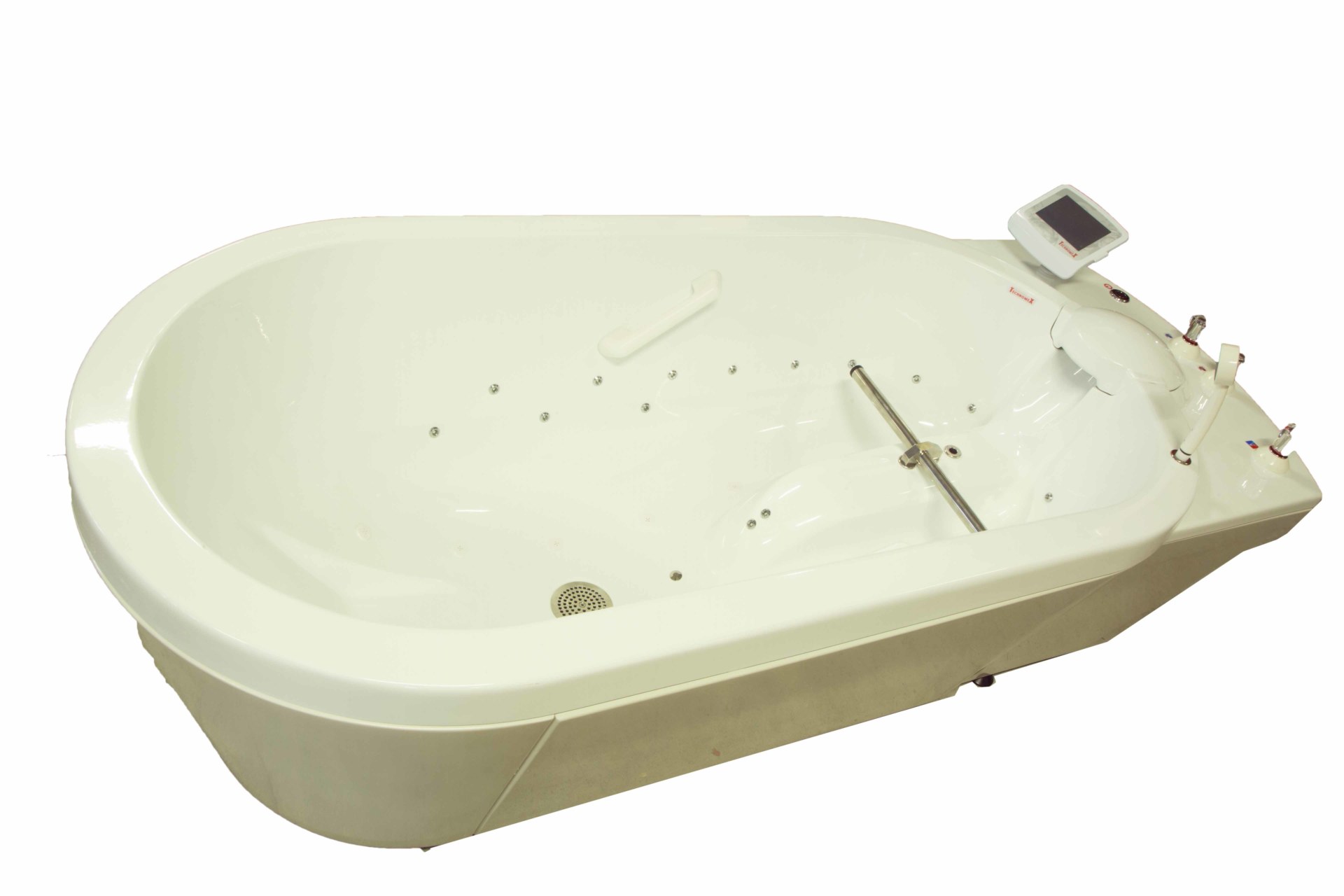

T-MP DISCOVERY

Medical bathtub

01.501.214
Producer: Technomex

T-MP DISCOVERY tub is design for comfortable and ergonomic balneological treatments. There are four options, so everyone can choose the device which suits the best to the specific requirements. With the optional retrofitting, you can also expand the range of applications of the model. All medical bathtubs are made of impact resistant glass fiber reinforced plastic GRP, which ensures long term work without investment and reduces the risk of bath coating damage.



230V, 50Hz (option 60hz)	Volume: 240 l	Length: 2200 mm	Width: 950 mm	Height: 980 mm

Technical features:

water filling system

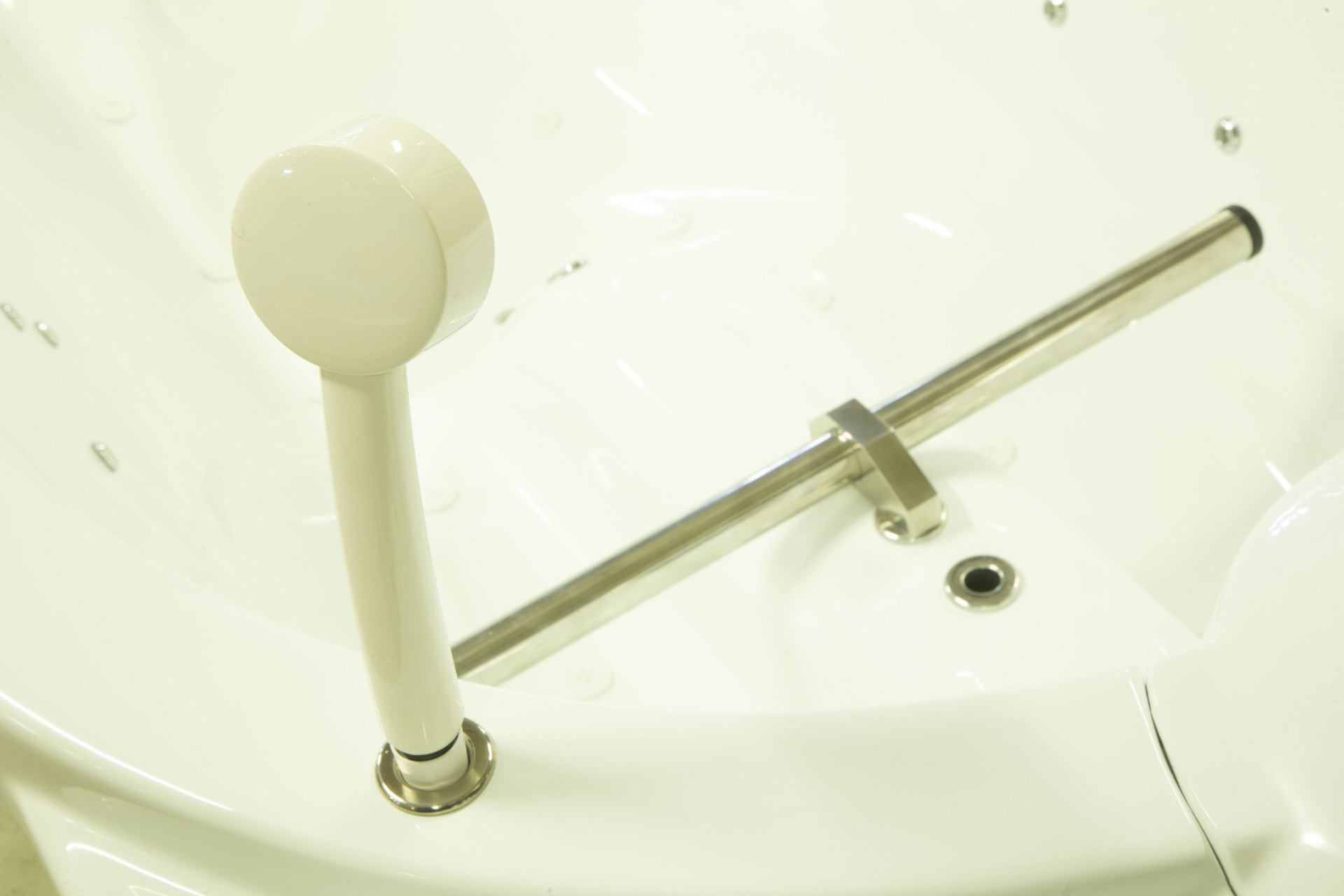

hand shower
half-automatic water drain
leveling and heigh adjusting feet
cleaning liquid (1l)

OPTION
“S” - upgrade for salty and sulphide water	YES
“B” - wide outflow for easier drainage of a mixture of mud and water	YES
“K’’ – installation to connect CO2 mixer (saturator)	YES

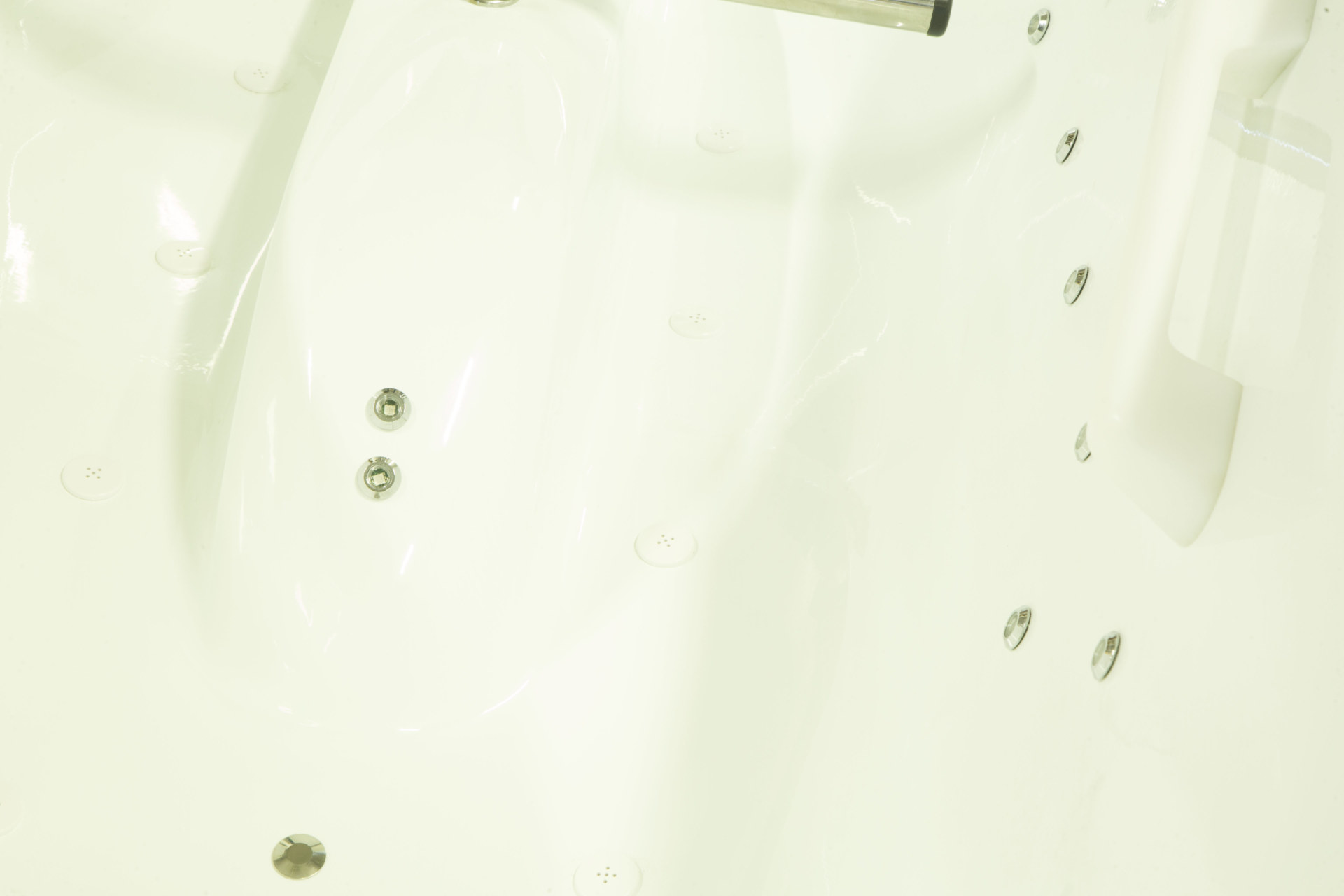

Automatic underwater massage: 8 side jets (not available with “B”)	YES
Automatic underwater massage: 6 spine jets (not available with “B”)	YES
Pearl bath system: 14x5 jets (air massage)	YES
Aromatherapy system (available only with air or underwater massage by jets, not available with “B”)	YES
Hose for underwater massage with 3 interchangeable nozzles with pump (not available with “B”)	YES

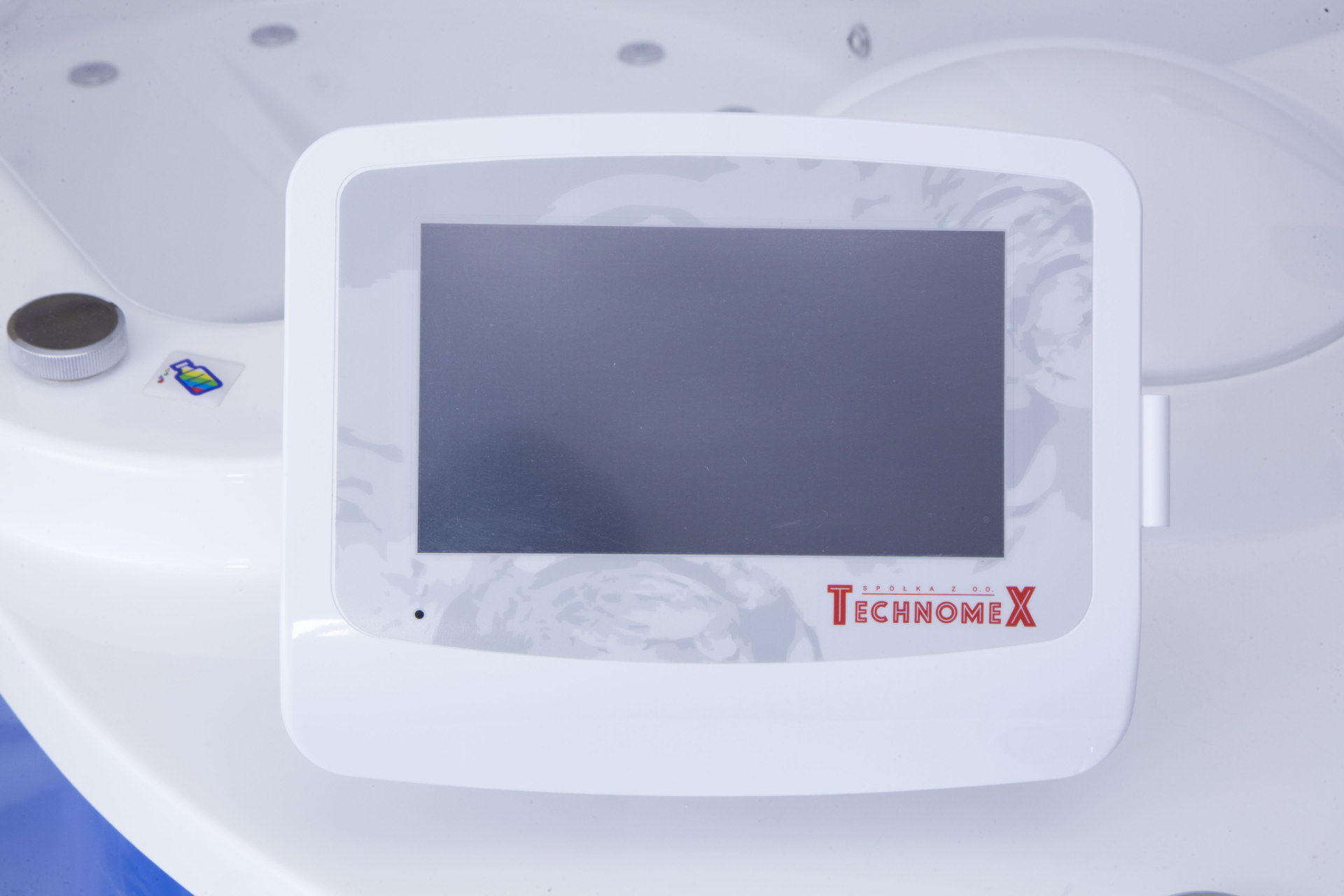

3,5” touch control panel with:	YES
Automatic filling system	YES
Automatic set of required water level	YES
Protection against water overflow	YES
Automatic switch off after time of treatment	YES
Pump “dry-working” protection	YES
Overload, failure and phase sequence change protection	YES
Chemical disinfection system (suggested with jets system)	YES
Aromatherapy system	YES
Upgrade for therapy with use of mineral water	YES
Electromagnetic water softener	YES
Stair to assist in getting into the tub	YES

SATURATOR CO2
Saturator is designed to enrich the water used in medicinal baths of CO2. Gas fed to the saturator is mixed at sufficient pressure with water and then transferred to the bath-tub, where treatment is performed
